产品说明
- 兼容60 mm同轴系统
- 适用安装Ø50.8 mm光学元件
- 光学元件固定方式：卡环（附带2个SM2R卡环）
- 底部M4螺纹孔用于连接光学接杆

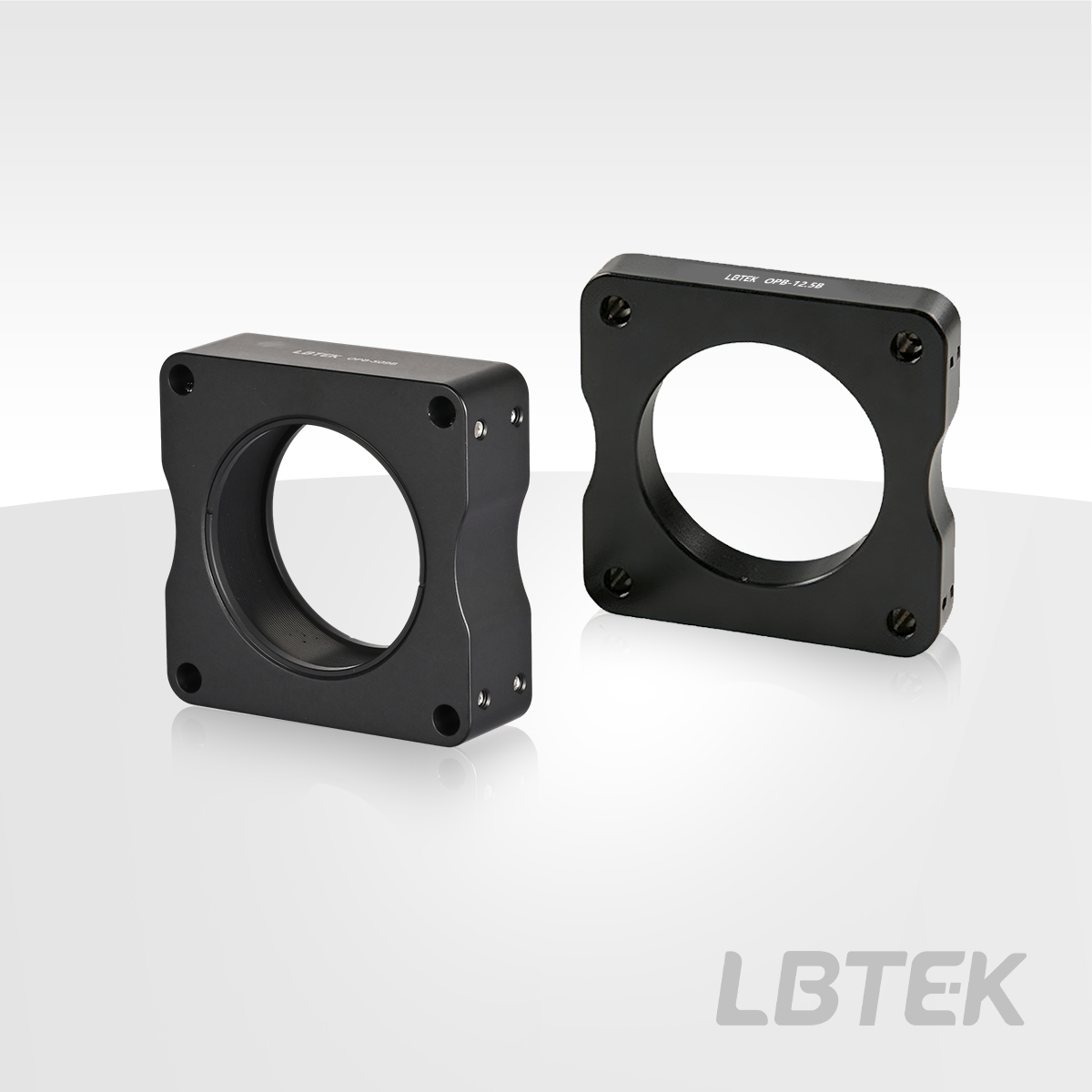

LBTEK同轴安装板常用于安装透镜等光学元件，并且可以将这些光学组件安装在同轴系统之中。同轴安装板带四个Ø6 mm贯穿孔，同轴系统接杆可贯穿，侧面M3紧定螺丝(兼容1.5 mm六角扳手)用于固定同轴系统安装接杆。底部带有一个M4螺纹孔，可以连接光学接杆，用于支撑同轴系统或者搭建自由空间光学系统.
产品属性
材质6061-T6 铝合金
适用光学元件直径Ø50.8 mm
表面处理黑色阳极氧化
适用同轴系统规格60 mm同轴系统
60 mm同轴安装板
- 适用于Ø50.8 mm光学元件
- 光学元件固定方式：卡环 （附带2个SM2R卡环）
- 兼容60 mm同轴系统
OPB-12.5B采用双卡环固定Ø50.8 mm光学元件，中心带 SM2螺纹贯穿孔，兼容Ø50.8 mm透镜套筒，OPB-12.5B可安装最大厚度为8 mm的光学元件，厚度超过8 mm的光学元件可预安装在Ø50.8 mm的透镜套筒中，再将套筒拧在OPB-12.5B上。
OPB-S09B采用双卡环固定Ø50.8 mm光学元件，中心带 SM2螺纹贯穿孔，兼容Ø50.8 mm透镜套筒，OPB-S09B可安装最大厚度为17.9 mm的光学元件，厚度超过17.9 mm的光学元件可预安装在Ø50.8 mm的透镜套筒中，再将套筒拧在OPB-S09B上。
同轴安装板可用于搭建自由空间系统，同时也兼容同轴系统
产品型号 | 适用光学元件直径 | 厚度 | 光轴高度 | 文件 | 单价 | 对比 | 发货日期 | ||
|---|---|---|---|---|---|---|---|---|---|
 | OPB-12.5B | Ø50.8 mm | 12.5mm | 38mm | ¥235.00 | 当天 | 加入购物车 | ||
| OPB-S09B 新品 | Ø50.8 mm | 22.9mm | 35.5mm | ¥340.00 | 当天 | 加入购物车 |
